Outdoor hombro press SR03-O - Bodytone

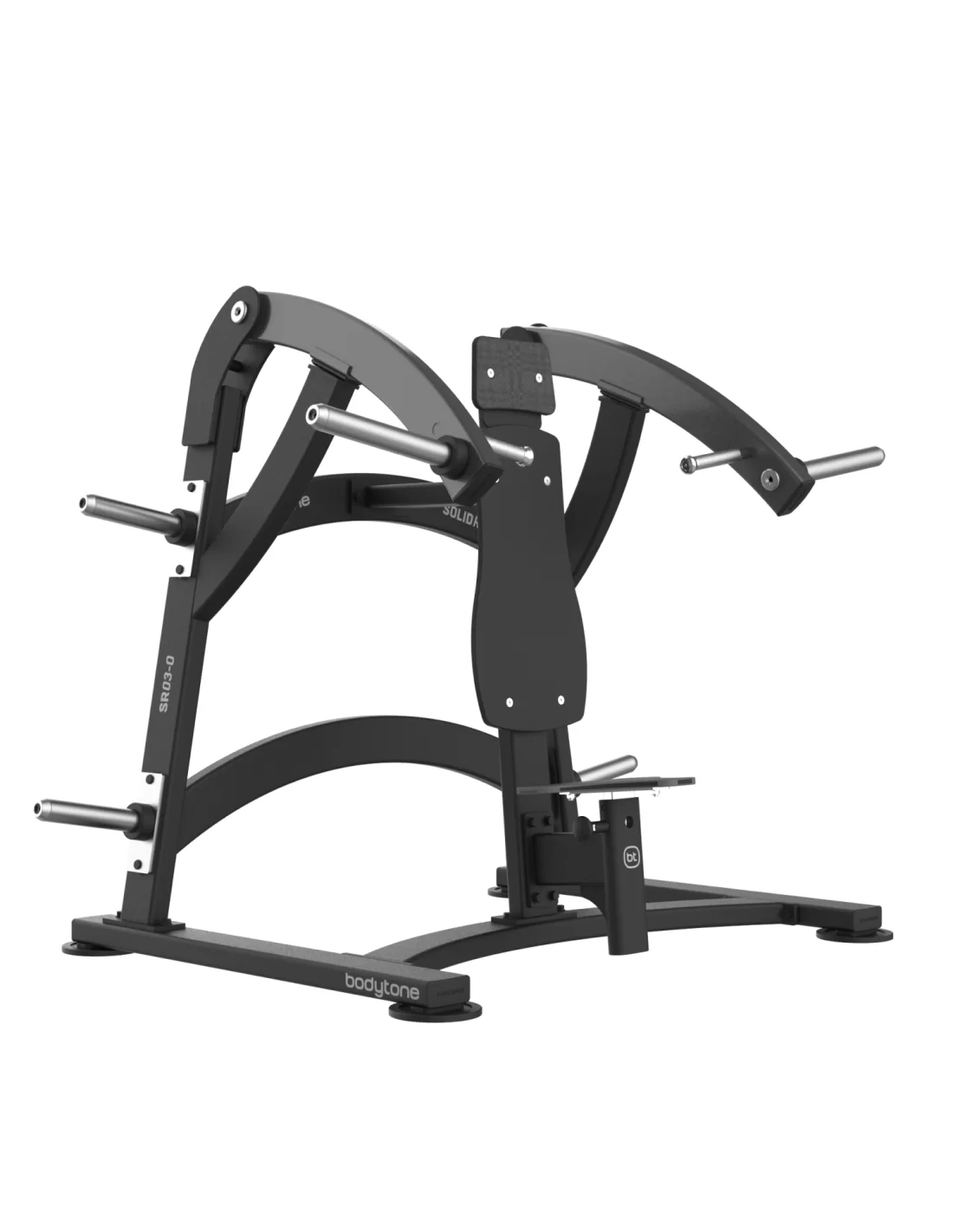

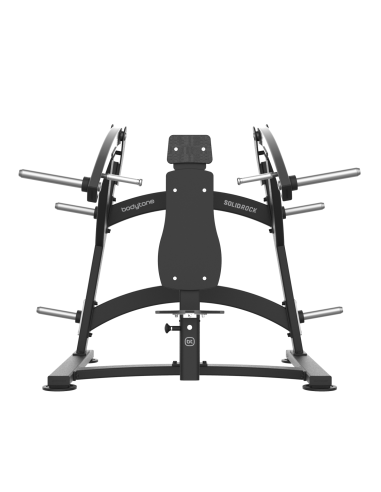

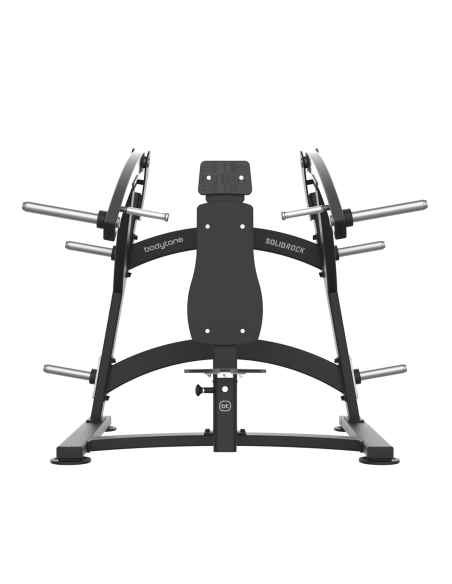

Discover the Solid Rock professional SR03-O Outdoor weight training machine from the Bodytone brand. This machine stands out for its design and innovation. It benefits from careful aesthetics and is equipped with the latest technology. We now present to you the new outdoor range.

Solid Rock equipment uses technology from the automotive industry to ensure a durable structure and paint for 10 years or more. A guarantee of quality, strength and durability.

The Solid Rock SR03-O weight machine is designed for professional use. It is ideal for strength-focused workouts. It is part of the Solid Rock product line, specialized in bodybuilding.

The machine structure is made of 110 x 52 mm steel tubes with a thickness of 3 mm. It is welded according to the standards of UNE 10219 regulation, quality S-275-J0H. The structure is enriched and optimized to maintain a constant section during the bending process, thus avoiding sensitive areas and reducing the breakage rate. The cold bending process, thanks to a system of 4 rollers, avoids any deformation and preserves the physical characteristics of the whole. Structural points and junction plates are welded on a closed periphery.

The machine is designed for outdoor use. Its paint is composed of 5 layers, with a thickness of 200 microns. The steel is pickled and stabilized by immersion in different degreasing solutions to guarantee perfect and complete cleaning of the base material. A coat of zinc phosphate is applied as an anti-rust primer, ensuring adequate insulation against internal oxidation and good paint adhesion. Three final coats of epoxy polyester powder paint are applied, specially designed for exteriors and dried at 240°C. A surface layer of protective polyester varnish is also applied.

The machine assembly process is carried out with a 13 mm plate system, avoiding play and twists in areas of high demand. An ergonomic and biomechanical study was carried out to optimize each exercise.

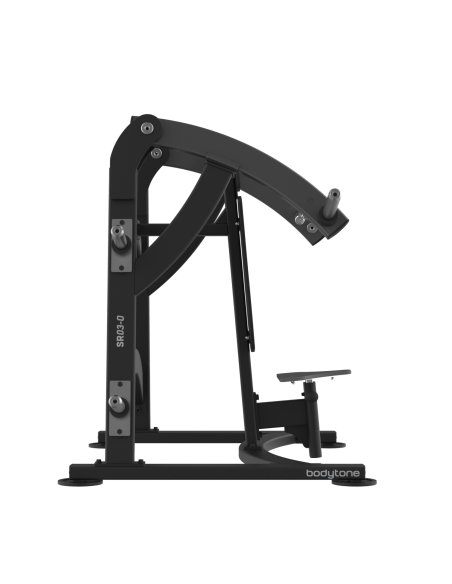

The dimensions of the assembled machine are 184 x 121 x 143 cm. It is designed to work the upper part of the body. The base is equipped with 4 non-slip tips for optimal stability.

The bearings used are SKF 6205 2Z stainless steel. They are mounted in a closed anti-backlash sleeve, ensuring a constant direction of movement.

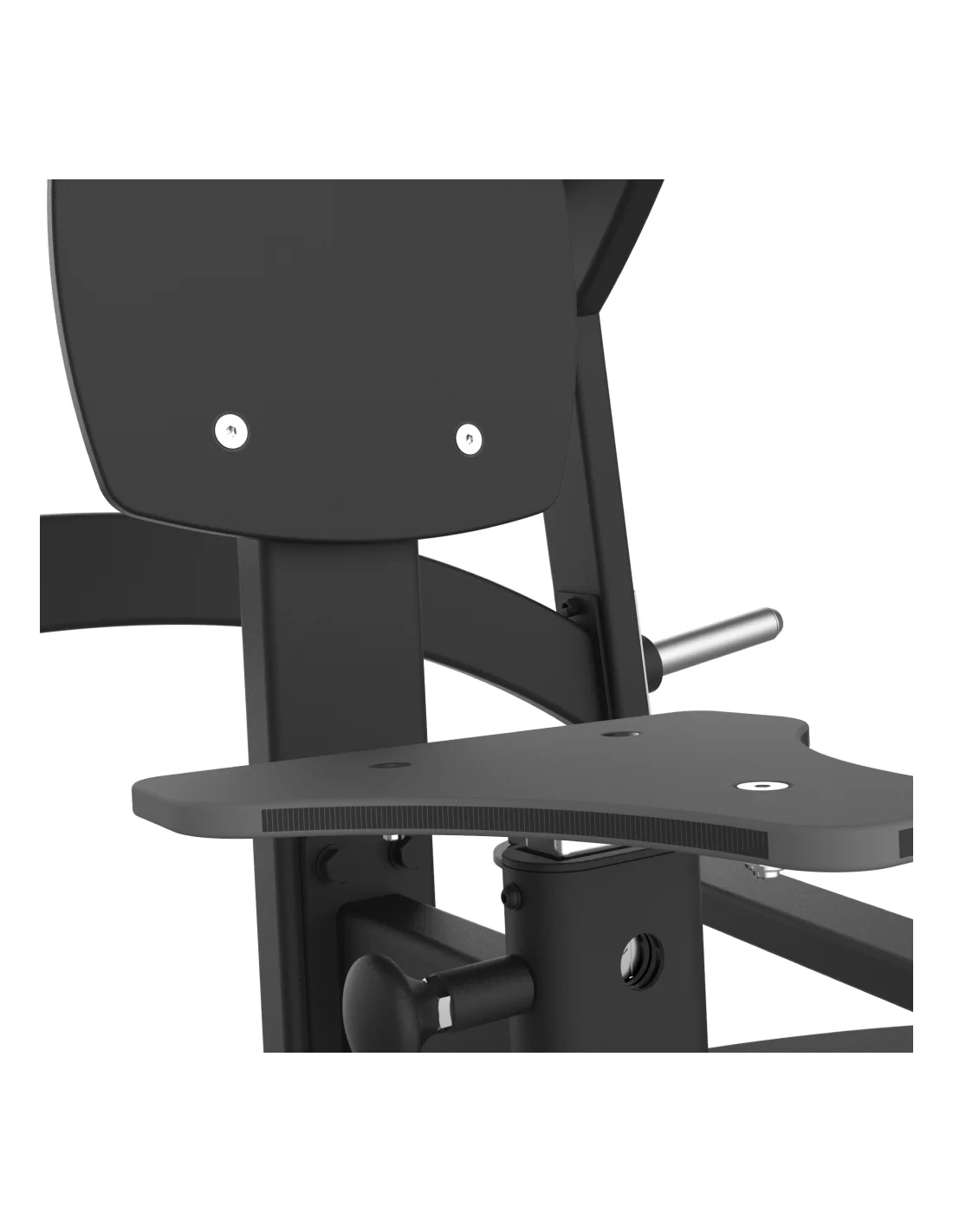

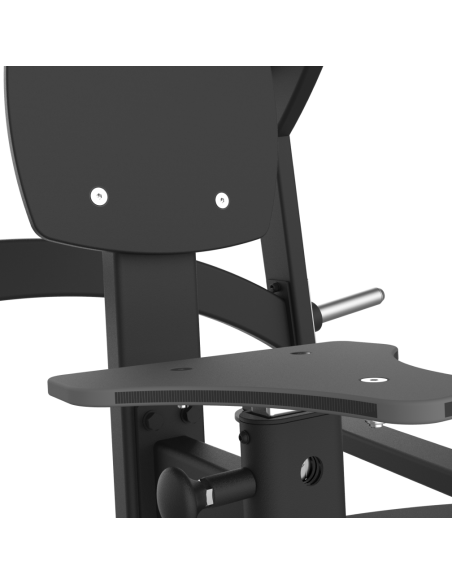

The machine's adjustment levers are made of AISI 316 stainless steel, specially designed to resist corrosion in marine environments. They are adjustable to 8 laser-engraved positions. The adjustment system is done using a single technopolymer bolt, with a breaking strength of 750 kg.

The handles are anodized aluminum, with a knurled texture for better grip.

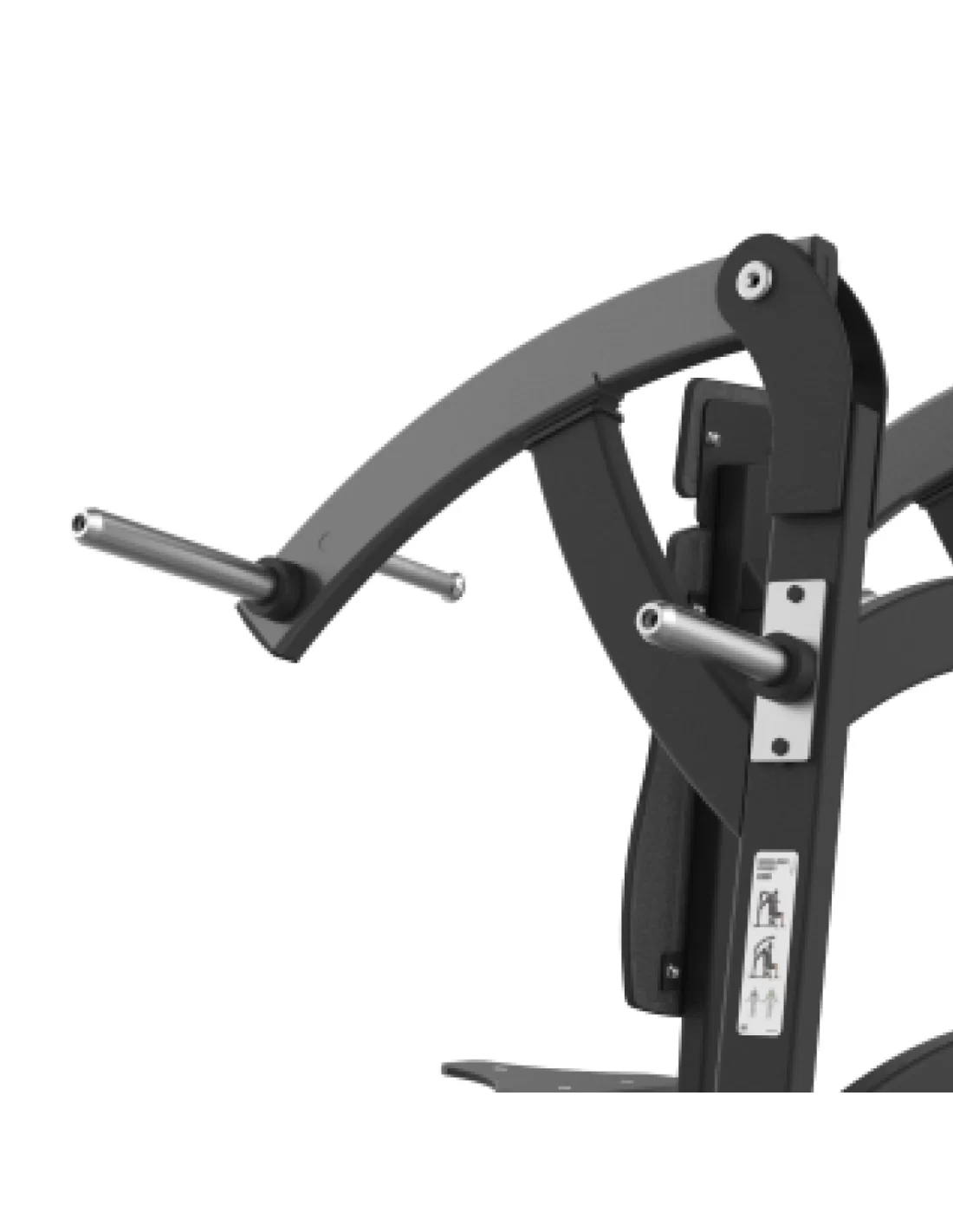

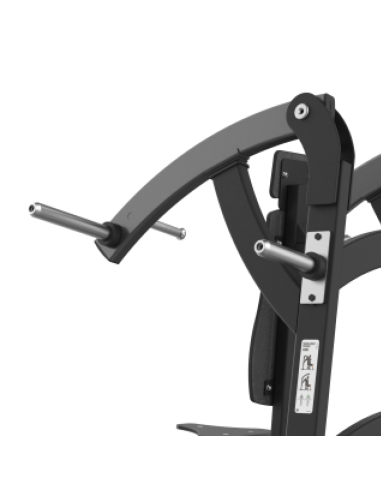

The machine axes are made of AISI 316 stainless steel, a class of austenitic steel more resistant to corrosion than class A2 thanks to the presence of molybdenum. They can be used in aggressive environments such as boiling sulfuric acid or environments containing chlorides up to certain levels. They are widely used in the cellulose, food and marine industries. Their backing is made of 10mm thick laser cut plates, with another 10mm thick plate to reinforce and ensure smooth movement without play or twisting from continuous use or loading.

The load capacity of the machine is 4 discs of 5 or 10 kg on each arm (discs not included).

The dimensions of the machine are 184 x 121 x 143 cm.

The Solid Rock SR03-O Outdoor weight machine is high-quality professional equipment, designed to last and offer optimal performance. It is ideal for gyms, fitness centers or individuals passionate about bodybuilding.

Features:
Weight: 197 kg
Gama: Professional
Entrenamiento type: Fuerza
Product Line: Solid Rock
Deportes: Bodybuilding
neto peso: 197 kg
Structure: Steel tubes of 110 x 52 mm with 3 mm thickness. Sold in accordance with the regulation of UNE 10219, calidad S-275-J0H. Enriquecido and optimizado to maintain a constant section in the curvado process, avoiding sensitive areas and minimizing the amount of roturas. Curved process in cold weather, using a 4-rod system, avoid any deformation in the process and maintain the physical characteristics in all parts. Perímetro cerrado de soldadura en los structurale points y placas de union.
units: 1
Usage area: Exterior
paint: 5 paint caps. 200 microns Acero decapado and stabilized by total immersion of the pieces in different desiccant solutions to guarantee perfect and complete cleaning of the material base. Antioxidant printing of zinc phosphorus to guarantee adequate protection of internal oxidation and good paint adhesion. 3 final coats of epoxy paint in polvo polyester, especially exterior dried at 240oC. Capa supercial de barniz protector de polyester.
mounting process: 13 mm of plate system against plate, to avoid holes and twists in the areas of maximum tension. An ergonomic and biomechanical study to optimize your exercise.
Mounted dimensions: 184 x 121 x 143 cm
Trabajo area: Tren superior
base bases: 4 antidelizantes tales.
Rods: SKF 6205 2Z. STAINLESS ACERO. Double rods of conical rods, placed in a circular casing, anti-holgura, ensures a constant direction of movement.
Regulating palancas: Seat base in AISI 316 stainless steel, especially anti-corrosion in marine environments. Adjustable with 8 laser recorded positions. Regulation system with a unique perno, manufactured in techno-polymer with a rotation index of 750 kg.
Fitted: Anodized ALUMINUM, knurled to favor the attachment.
Ejes: Mechanized stainless steel AISI 316, austenitic steels more resistant to corrosion with respect to class A2 thanks to the presence of molibdeno, which allows the use in aggressive environments such as sulfuric acid in boiling or in environments that contain cloruros until they are level . Widely used in cell, food and marinade industries. It supports this shape for 10 mm thick boards cut by laser with other 10 mm thick boards to reforzar and ensure smooth movement without holes or twists produced for continued use or loading.
Cargo capacity: 4 in each arm, discs of 5 or 10 Kg. (discs not included)
medidas: 184 x 121 x 143 cm
