Prensa jaca SR09E - Bodytone

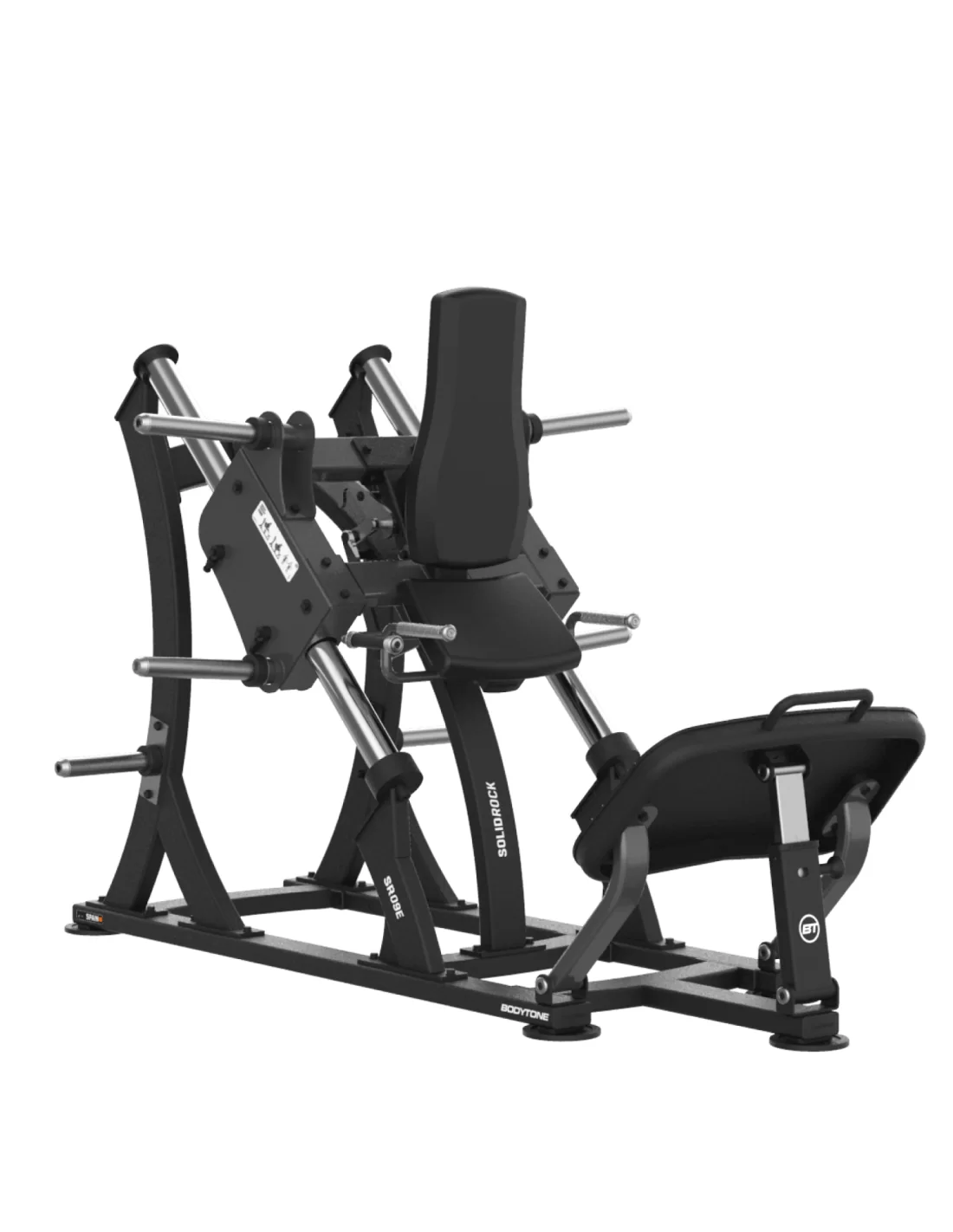

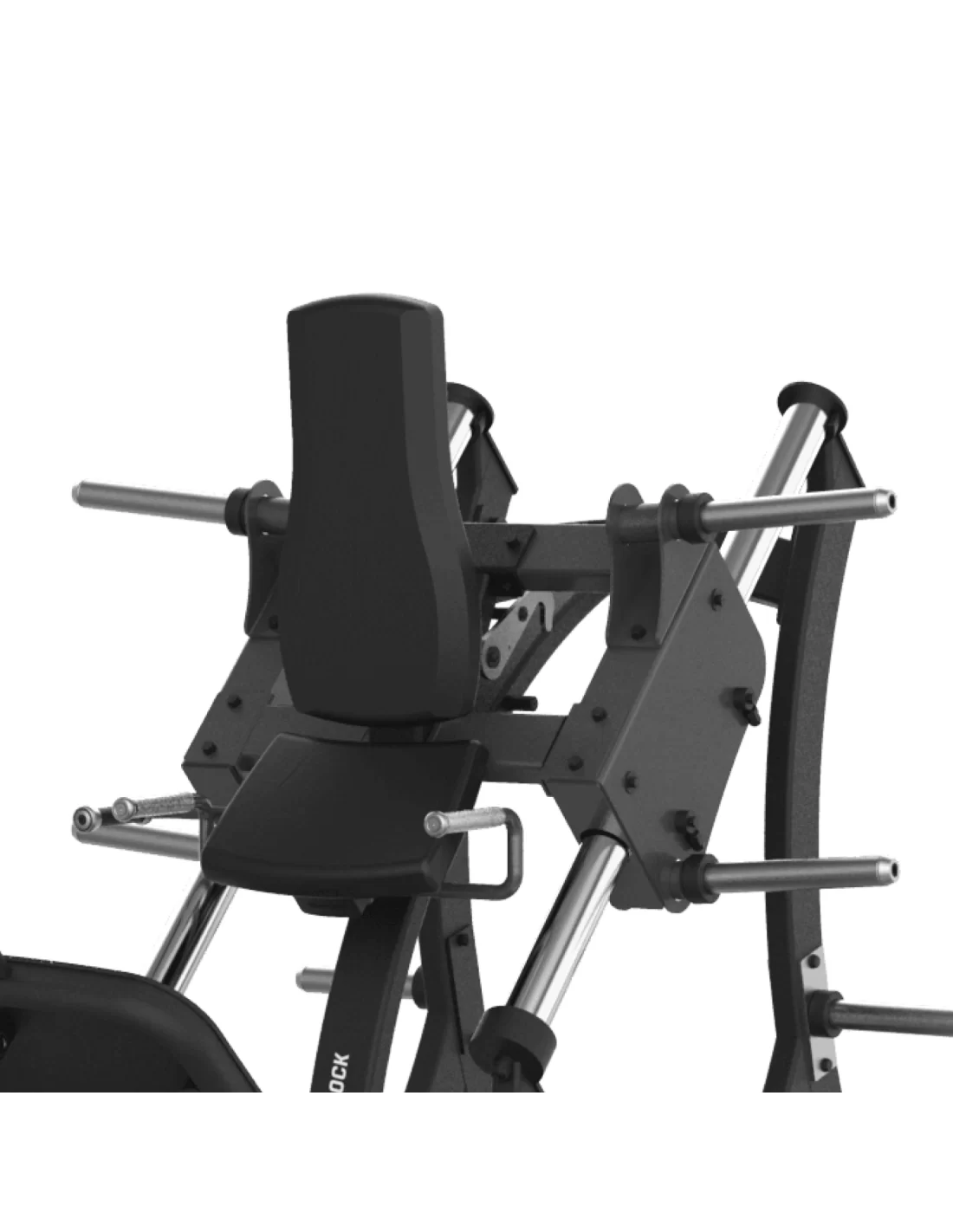

The Bodytone Jaca SR09E is a professional bodybuilding machine designed for its innovative design. It is equipped with the latest technology to provide maximum performance to the athlete. In the Bodytone Solid Rock machine line, this brand is characterized by a completely renovated design, with curves and green corporate color, which provides an elegant and sports area.

The Squat SR09E model is specially designed to gain muscular mass on the legs. Solid Rock teams use automotive industry technology to guarantee that the structure and paint will last for 10 years or more. This provides a guarantee of quality, resistance and durability.

With a weight of 275 kg, the dimensions of the machine are 240 × 151 × 150 cm. Relevant to the professional range and is designed for training training in muscle training. The machine has a structure of steel tubes of 110 x 52 mm and 3 mm of thickness, soldered with the regulation of UNE 10219 and of caliber S-275-J0H. This structure has been enriched and optimized to maintain a constant section in the curving process, avoiding sensitive areas and minimizing the amount of rotation. Furthermore, the curvado process in cold, carried out through a system of 4 rods, avoids any deformation in the process and maintains the physical characteristics in all parts. The machine also has a welded perimeter at the structural points and union plates.

As for the materials and supports, disc supports are made of 20 mm thick rubber, while the mobile parts are made of 50 mm thick rubber for greater resistance. The machine can be used indoors and with 3 paint caps. The steel has been stripped and stabilized by total immersion in various desiccant solutions to guarantee perfect cleaning of the material base. Also apply an antioxidant print to avoid internal oxidation and ensure good paint adhesion. Finally, apply 2 final coats of epoxy powder coated polyester paint, dried at 240°C.

The machine assembly process is carried out using a 10 mm board counter-board system to avoid holes and twists in the most damaged areas. Se ha carried out an ergonomic and biomechanical study to optimize every exercise.

The design of the machine has been designed without the supervision of professionals and associated professionals, using a biomechanical and ergonomic studio. From the initial start-up to the production of prototypes and tests carried out by professional technicians, it has been worked on to guarantee the quality and efficiency of the products.

Once mounted, the machine has dimensions of 240 x 190 x 152 cm and has 4 anti-slip containers at the base. The rods use their SKF with double rods of conical rods, placed in a circled casing to avoid holguras and ensure constant movement.

The button is pressed with regulation devices, allowing you to adjust the speed by means of a pop-pin. The regulation system is made using a uniquely manufactured techno-polymer with a weight rating of 750 kg. The tips are made of anodised and knurled aluminum to favor the fit.

To guarantee safety during operation, the machine is equipped with a safety palanca. We used our laser cut 10 mm thick boards, reforged with another 10 mm thick board to avoid twists and turns produced by continued use or loading.

The loading capacity of the device is up to 240 kg for storage, with supports for 6 Bodytone discs of 20 kg by arm.

In summary, the Bodytone Prensa Jaca SR09E is a professional muscle building machine designed to gain muscular mass in the stones. With its innovative design and advanced technology, guaranteed quality, resistance and durability. Its steel structure, assembly process and high quality materials ensure safe and efficient training.

Features:
Weight: 275 kg
Dimensions: 240 × 151 × 150 cm
Gama: Professional
Entrenamiento type: Fuerza
Product Line: Solid Rock
Deportes: Bodybuilding
neto peso: 305 kg
Structure: Steel tubes of 110 x 52 mm with 3 mm thickness. Sold in accordance with the regulation of UNE 10219, calidad S-275-J0H. Enriquecido and optimizado to maintain a constant section in the curvado process, avoiding sensitive areas and minimizing the amount of roturas. Curved process in cold weather, using a 4-rod system, avoid any deformation in the process and maintain the physical characteristics in all parts. Perímetro cerrado de soldadura en los structurale points y placas de union.
materials and covers: 20 mm thick rubber covers in disc supports. 50 mm thick rubber covers to support mobile parts.
units: 1
Usage area: Interior
paint: 3 paint caps. Acero decapado and stabilized by total immersion of the pieces in different desiccant solutions to guarantee perfect and complete cleaning of the material base. Antioxidant printing to guarantee adequate protection of internal oxidation and good paint adhesion. 2 final coats of epoxy paint in polvo polyester, dried at 240oC.
mounting process: 10 mm of plate system against plate, to avoid holes and twists in the areas of maximum tension. An ergonomic and biomechanical study to optimize your exercise.
design: Biomechanical and ergonomic study based on the supervision of professionals and associated athletes. For a long period of design; From the factory, engineering investigation, prototype production and testing by professional athletes, new products sold for sale.
Mounted dimensions: 240 x 190 x 152 cm
base: 4 antidelizantes tales.
Rods: SKF double rods of conical rods, placed in a circled casing, anti-holgura, ensures a constant direction of movement.
Regulation palancas: Respaldo regulable via pop-pin. Regulation system with a unique perno, manufactured in techno-polymer with a rotation index of 750 kg.
Fittings: Anodized ALUMINUM, knurled to favor the attachment.
safety system: Safety Palanca
ejes: 10mm thick laser cut plates with other 10mm thick boards to reforzar, to ensure smooth movement without holguras or twists produced for continued use or loading.
Cargo capacity: Supports 6 Bodytone discs of 20 kg by arm (up to 240 kg for training)
