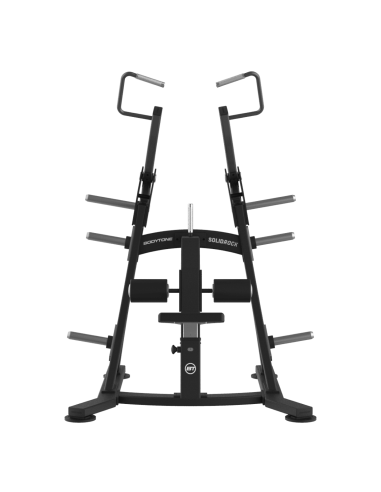

SR02E insulated back protectors - Bodytone
EN STOCK
€3,299.00
Tax included
825 € par mois
289 € par mois
15 jours ouvré
825 € par mois
24X
144 € par mois
36X
97 € par mois
289 € par mois
Discover the SR02E isolateral back machine from Bodytone, ideal for gyms. With its innovative and aesthetic design, this machine uses technology from the automotive industry to ensure exceptional durability. Its curved design and green color bring a sporty and elegant touch. Benefit from a guarantee of quality, resistance and durability of up to 10 years.
The Bodytone SR02E isolateral back machine is high-quality professional strength training equipment. Designed with an innovative and aesthetic design, this machine offers an exceptional workout experience.
Bodytone's Solid Rock range stands out for its modern design and elegant curves, combined with the brand's iconic green color, which gives it a sporty and elegant look. Solid Rock equipment uses cutting-edge technology inspired by the automotive industry, ensuring a durable structure and paint for 10 years or more.
Weighing 130 kg, this isolateral back machine is ideal for strength training. It is made of steel tubes measuring 110 x 52 mm with a thickness of 3 mm, welded according to the regulatory standards of UNE 10219, quality S-275-J0H. The structure is optimized to maintain a constant section during the curvature process, thus avoiding sensitive areas and minimizing the risk of breakage. The cold bending process, carried out using a 4-roller system, preserves the physical characteristics of the part.
Finishes include 20mm thick rubber coverings for the disc supports and 50mm thick for the moving parts. The machine is equipped with 4 non-slip feet for optimal stability during use.
The painting of the machine is composed of 3 layers, including total immersion of the parts in degreasing solutions to ensure perfect cleanliness of the base material. A coat of antioxidant primer ensures adequate insulation against internal corrosion and good paint adhesion. Two final coats of epoxy powder paint are applied and dried at 240°C.
The machine is assembled using a 12 mm plate-to-plate system to avoid play and twisting in areas of high stress. An ergonomic and biomechanical study was carried out to optimize each exercise.
The dimensions of the assembled machine are 148 x 160 x 193 cm, making it compact and suitable for indoor use.
The Bodytone SR02E isolateral backpack machine is equipped with SKF double tapered roller bearings, housed in an anti-backlash closed sleeve, ensuring consistent and smooth movement.
The anodized aluminum handles are textured for a better grip. The machine axles are laser cut from 10mm thick plates, reinforced with another 10mm plate to ensure smooth movement without play or twisting caused by continuous use or load.
The load capacity of the machine is 240 kg for intensive training. It is equipped with supports that can accommodate up to 6 Bodytone discs of 20 kg per arm.
The Bodytone SR02E isolateral back machine is a perfect choice for bodybuilding professionals looking for high-quality, durable and high-performance equipment.
Features:
Weight: 130 kg
Gama: Professional
Entrenamiento type: Fuerza
Product Line: Solid Rock
Deportes: Bodybuilding
neto peso: 130 kg
Structure: Steel tubes of 110 x 52 mm with 3 mm thickness. Sold in accordance with the regulation of UNE 10219, calidad S-275-J0H. Enriquecido and optimizado to maintain a constant section in the curvado process, avoiding sensitive areas and minimizing the amount of roturas. Curved process in cold weather, using a 4-rod system, avoid any deformation in the process and maintain the physical characteristics in all parts. Perímetro cerrado de soldadura en los structurale points y placas de union.
materials and covers: 20 mm thick rubber covers in disc supports. 50 mm thick rubber covers to support mobile parts.
units: 1
Usage area: Interior
paint: 3 paint caps. Acero decapado and stabilized by total immersion of the pieces in different desiccant solutions to guarantee perfect and complete cleaning of the material base. Antioxidant printing to guarantee adequate protection of internal oxidation and good paint adhesion. 2 final coats of epoxy paint in polvo polyester, dried at 240oC.
mounting process: 12 mm of plate system against plate, to avoid holes and twists in the areas of maximum tension. An ergonomic and biomechanical study to optimize your exercise.
design: Biomechanical and ergonomic study based on the supervision of professionals and associated athletes. For a long period of design; from the factory, engineering investigation, prototyping production, testing by professional athletes, new products sold for sale.
Mounted dimensions: 148 x 160 x 193 cm
Trabajo area: Tren superior
base bases: 4 antidelizantes tales.
Rods: SKF double rods of conical rods, placed in a circled casing, anti-holgura, ensures a constant direction of movement.
Regulation palancas: Adjustable seat via pop-pin. Regulation system with a unique perno, manufactured in techno-polymer with a rotation index of 750 kg.
Fitted: Anodized ALUMINUM, knurled to favor the attachment.
ejes: 10mm thick laser cut plates with other 10mm thick boards to reforzar, to ensure smooth movement without holguras or twists produced for continued use or loading.
Cargo capacity: 310 mm supports for 6 Bodytone discs of 20 kg by arm (up to 240 kg for training)
medidas: 148 x 160 x 193 cm
Bodytone's Solid Rock range stands out for its modern design and elegant curves, combined with the brand's iconic green color, which gives it a sporty and elegant look. Solid Rock equipment uses cutting-edge technology inspired by the automotive industry, ensuring a durable structure and paint for 10 years or more.
Weighing 130 kg, this isolateral back machine is ideal for strength training. It is made of steel tubes measuring 110 x 52 mm with a thickness of 3 mm, welded according to the regulatory standards of UNE 10219, quality S-275-J0H. The structure is optimized to maintain a constant section during the curvature process, thus avoiding sensitive areas and minimizing the risk of breakage. The cold bending process, carried out using a 4-roller system, preserves the physical characteristics of the part.
Finishes include 20mm thick rubber coverings for the disc supports and 50mm thick for the moving parts. The machine is equipped with 4 non-slip feet for optimal stability during use.
The painting of the machine is composed of 3 layers, including total immersion of the parts in degreasing solutions to ensure perfect cleanliness of the base material. A coat of antioxidant primer ensures adequate insulation against internal corrosion and good paint adhesion. Two final coats of epoxy powder paint are applied and dried at 240°C.
The machine is assembled using a 12 mm plate-to-plate system to avoid play and twisting in areas of high stress. An ergonomic and biomechanical study was carried out to optimize each exercise.
The dimensions of the assembled machine are 148 x 160 x 193 cm, making it compact and suitable for indoor use.
The Bodytone SR02E isolateral backpack machine is equipped with SKF double tapered roller bearings, housed in an anti-backlash closed sleeve, ensuring consistent and smooth movement.
The anodized aluminum handles are textured for a better grip. The machine axles are laser cut from 10mm thick plates, reinforced with another 10mm plate to ensure smooth movement without play or twisting caused by continuous use or load.
The load capacity of the machine is 240 kg for intensive training. It is equipped with supports that can accommodate up to 6 Bodytone discs of 20 kg per arm.
The Bodytone SR02E isolateral back machine is a perfect choice for bodybuilding professionals looking for high-quality, durable and high-performance equipment.
Features:
Weight: 130 kg
Gama: Professional
Entrenamiento type: Fuerza
Product Line: Solid Rock
Deportes: Bodybuilding
neto peso: 130 kg
Structure: Steel tubes of 110 x 52 mm with 3 mm thickness. Sold in accordance with the regulation of UNE 10219, calidad S-275-J0H. Enriquecido and optimizado to maintain a constant section in the curvado process, avoiding sensitive areas and minimizing the amount of roturas. Curved process in cold weather, using a 4-rod system, avoid any deformation in the process and maintain the physical characteristics in all parts. Perímetro cerrado de soldadura en los structurale points y placas de union.
materials and covers: 20 mm thick rubber covers in disc supports. 50 mm thick rubber covers to support mobile parts.
units: 1
Usage area: Interior
paint: 3 paint caps. Acero decapado and stabilized by total immersion of the pieces in different desiccant solutions to guarantee perfect and complete cleaning of the material base. Antioxidant printing to guarantee adequate protection of internal oxidation and good paint adhesion. 2 final coats of epoxy paint in polvo polyester, dried at 240oC.
mounting process: 12 mm of plate system against plate, to avoid holes and twists in the areas of maximum tension. An ergonomic and biomechanical study to optimize your exercise.
design: Biomechanical and ergonomic study based on the supervision of professionals and associated athletes. For a long period of design; from the factory, engineering investigation, prototyping production, testing by professional athletes, new products sold for sale.
Mounted dimensions: 148 x 160 x 193 cm
Trabajo area: Tren superior
base bases: 4 antidelizantes tales.
Rods: SKF double rods of conical rods, placed in a circled casing, anti-holgura, ensures a constant direction of movement.
Regulation palancas: Adjustable seat via pop-pin. Regulation system with a unique perno, manufactured in techno-polymer with a rotation index of 750 kg.
Fitted: Anodized ALUMINUM, knurled to favor the attachment.
ejes: 10mm thick laser cut plates with other 10mm thick boards to reforzar, to ensure smooth movement without holguras or twists produced for continued use or loading.
Cargo capacity: 310 mm supports for 6 Bodytone discs of 20 kg by arm (up to 240 kg for training)
medidas: 148 x 160 x 193 cm
BT_SR02E
