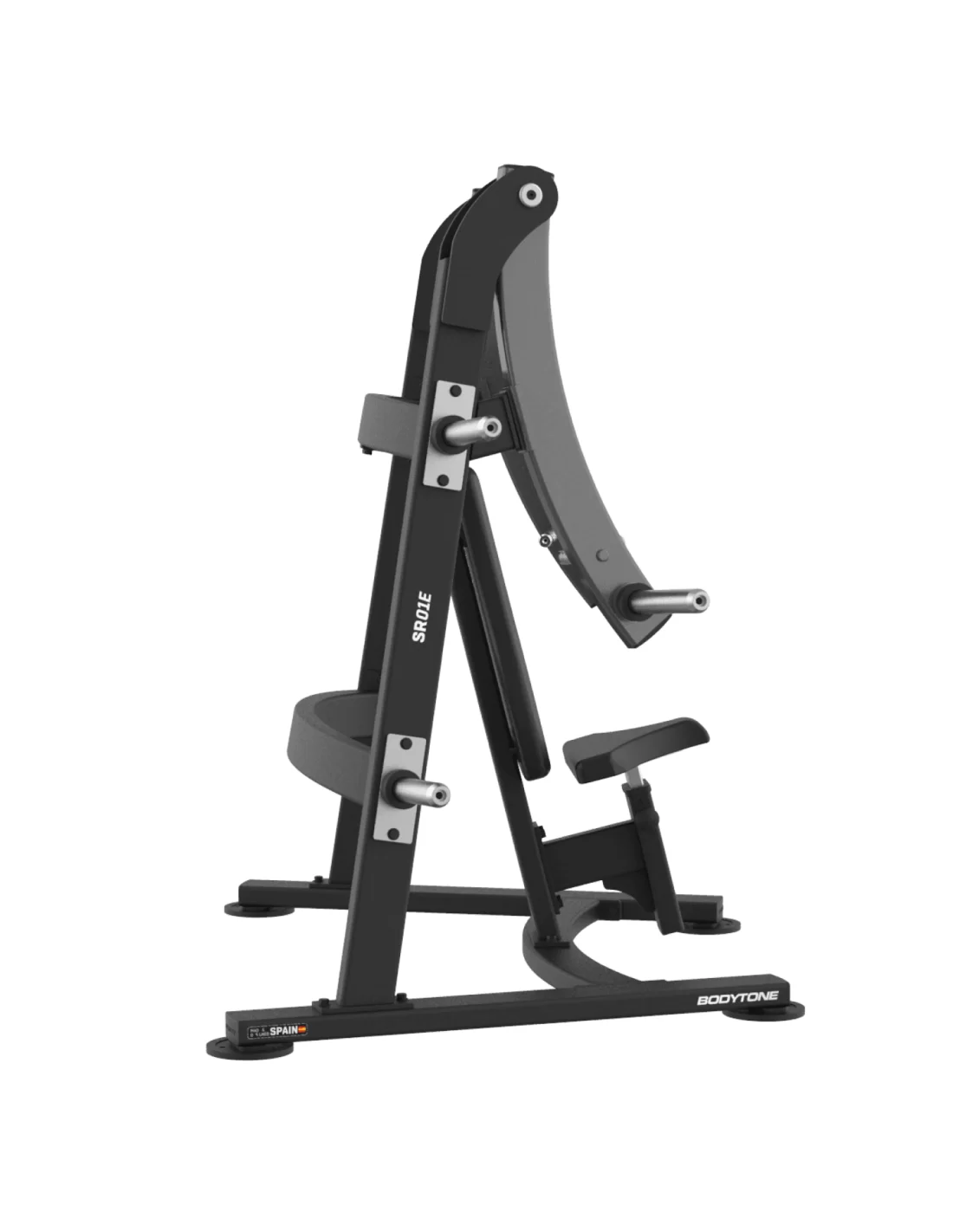

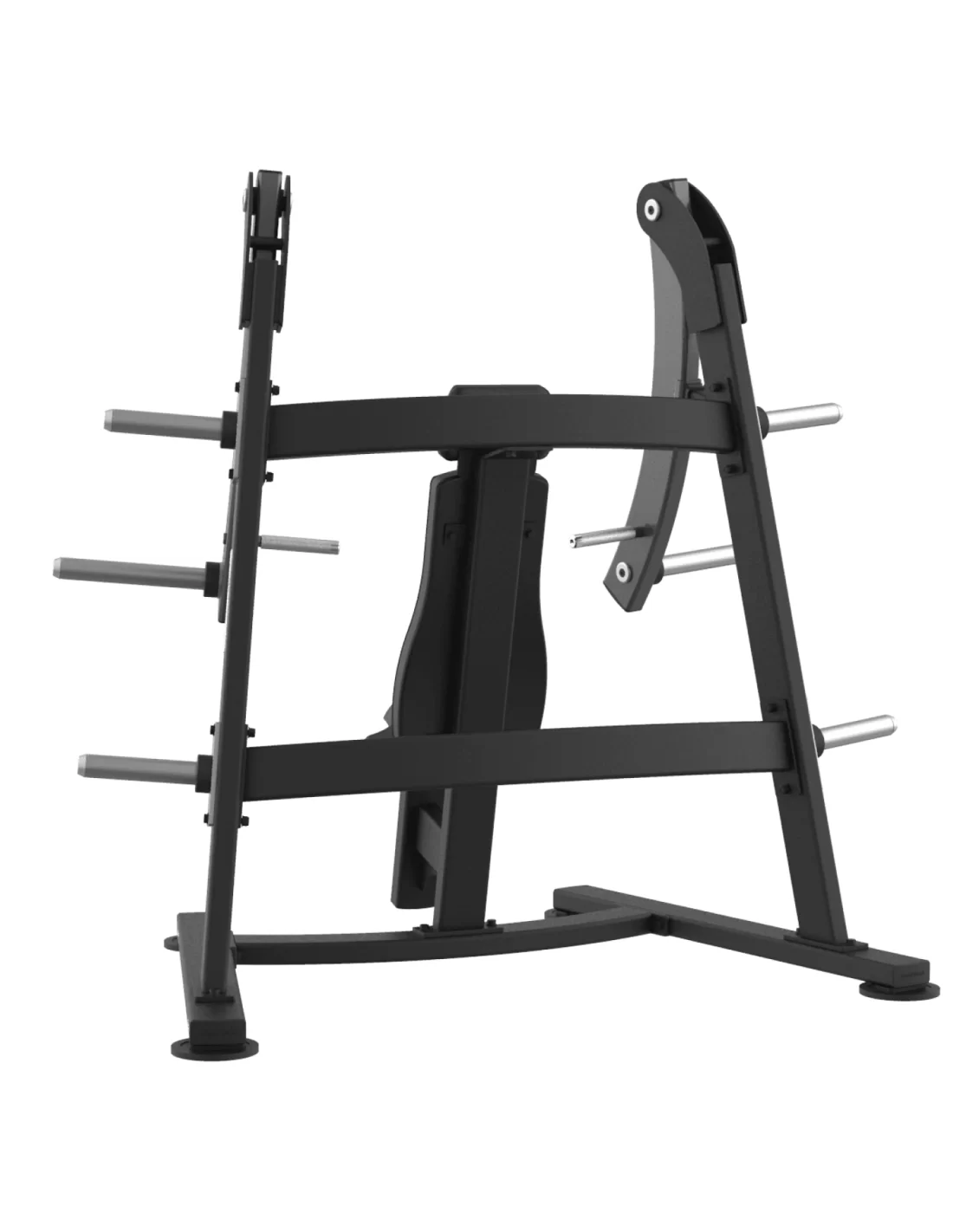

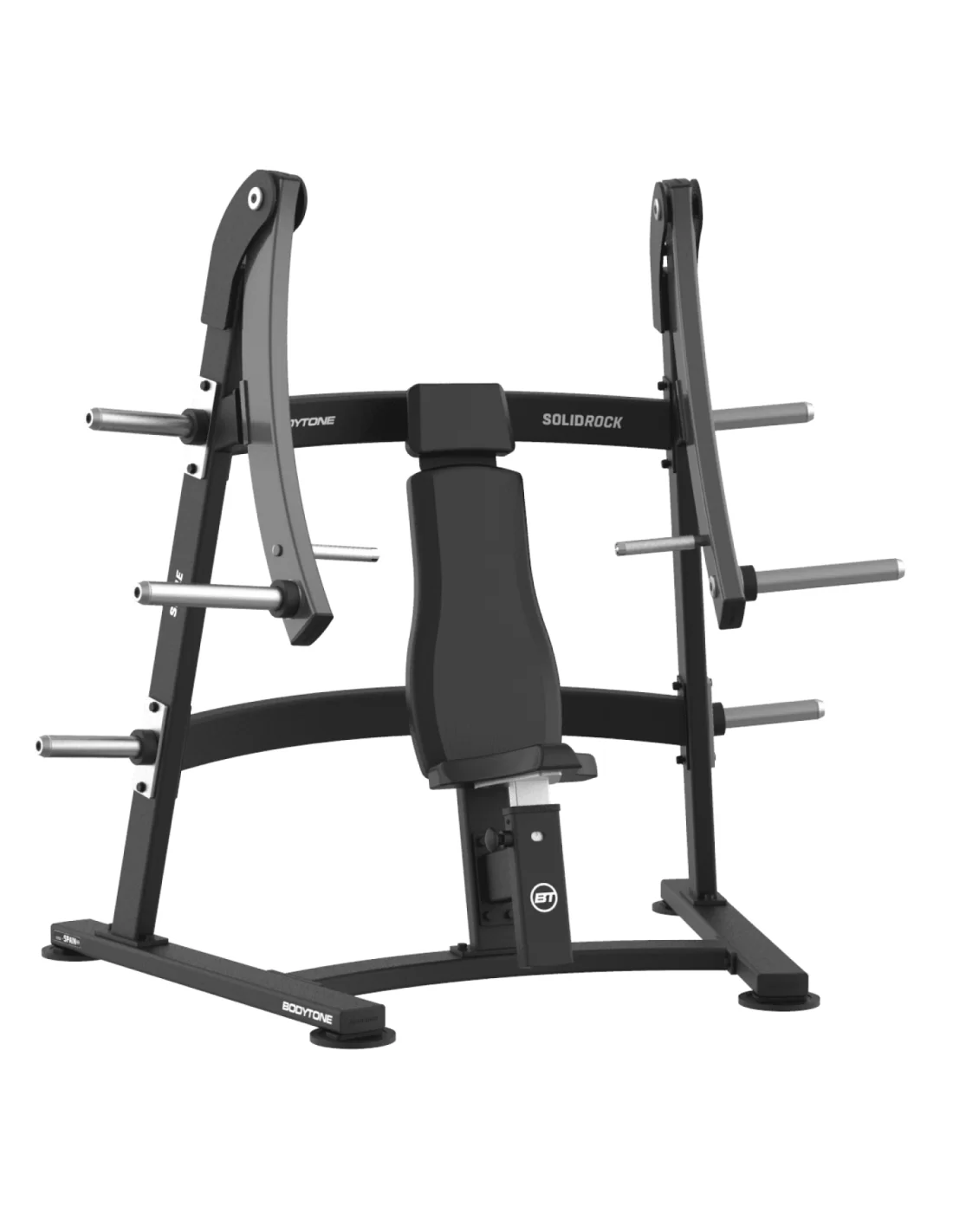

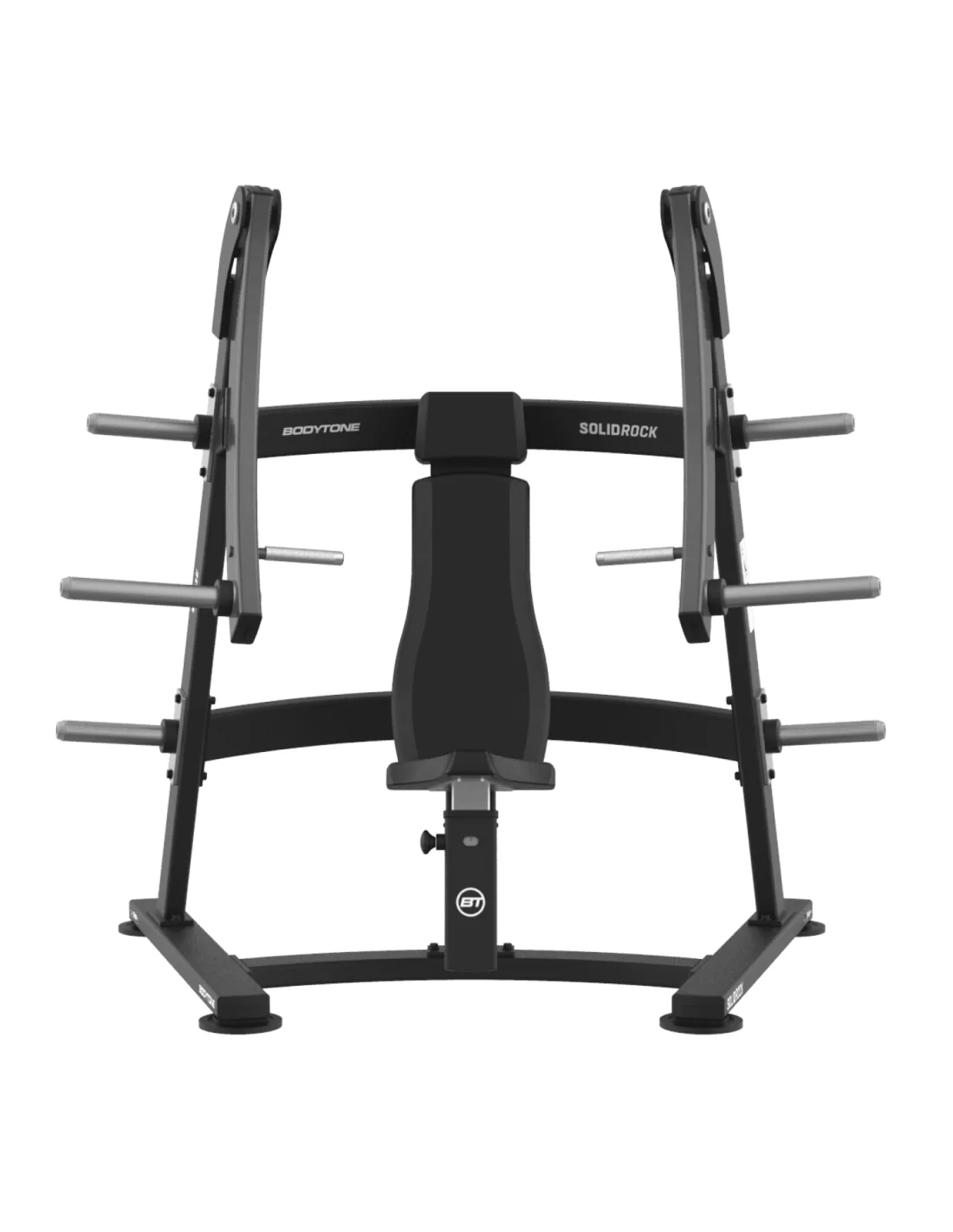

Vertical press SR01E - Bodytone

The Bodytone SR01E Vertical Press is a product from the Solid Rock line, designed to provide an elegant, simple and versatile training experience. This machine perfectly accompanies your movements during your exercises, thanks to its exclusive design which guarantees exceptional biomechanical performance.

With a weight of 150 kg, the SR01E vertical press is suitable for professional use. It is specially designed for strength training, making it an ideal choice for bodybuilding enthusiasts.

The structure of this machine is made of steel tubes measuring 110 x 52 mm, with a thickness of 3 mm. It is welded according to the regulatory standards of UNE 10219, with quality S-275-J0H. This structure is enriched and optimized to maintain a constant section during the bending process, thus avoiding sensitive areas and minimizing the risk of breakage. Bending is carried out cold, using a 4-roller system, which avoids any deformation and preserves the physical characteristics of the part. The structural points and junction plates are welded around the edges to guarantee optimal strength.

The finishes of this machine are also of high quality. The disc mounts feature 20mm thick rubber coatings, while the moving parts benefit from 50mm thick rubber coatings for added strength. The machine is painted with three coats of paint, including a coat of antioxidant primer to provide corrosion protection and good paint adhesion. The final two coats of polyester epoxy paint are dried at 240°C for optimal durability.

The assembly process of this machine is also careful, with a 10mm plate-to-plate system to avoid play and twisting in areas subject to maximum effort. Ergonomic and biomechanical work has been carried out to optimize each exercise and guarantee optimal comfort of use.

The design of this machine was developed in collaboration with professionals and athletes, taking into account the principles of biomechanics and ergonomics. After an extensive design period, including sketches, engineering studies, prototypes and testing by professional athletes, Bodytone products are ready for market.

The assembled dimensions of this machine are 185 x 107 x 173 cm, making it compact and suitable for indoor use. It is equipped with 4 non-slip feet to ensure maximum stability during training.

The bearings of this machine are double row tapered bearings from the SKF brand, housed in a closed anti-backlash sleeve, guaranteeing constant and smooth movement.

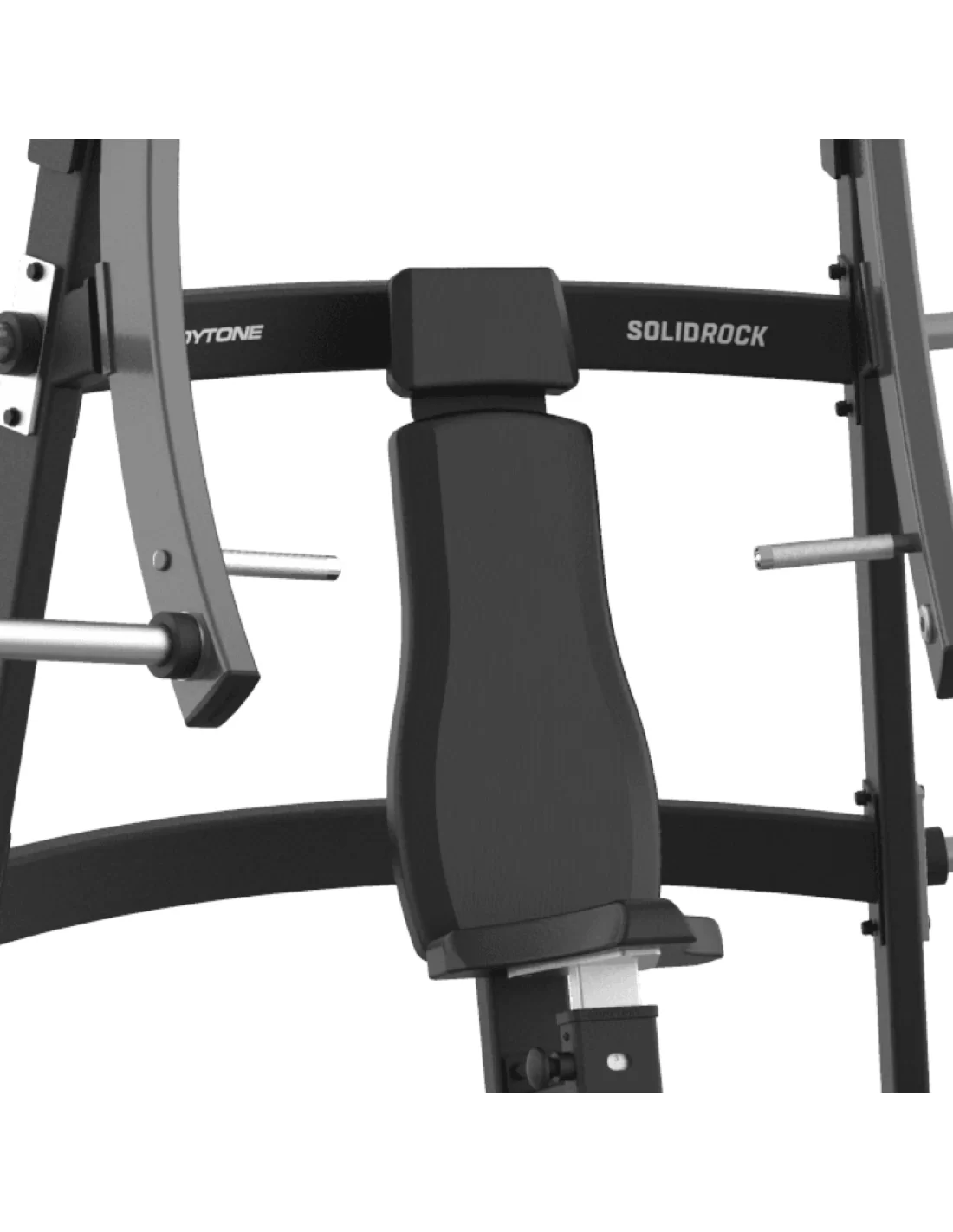

The seat of this machine is adjustable using a pop-pin system, and regulation is done using a single tecno-polymer bolt, with a breaking strength of 750 kg.

The handles are anodized aluminum, with a knurled texture for optimal grip.

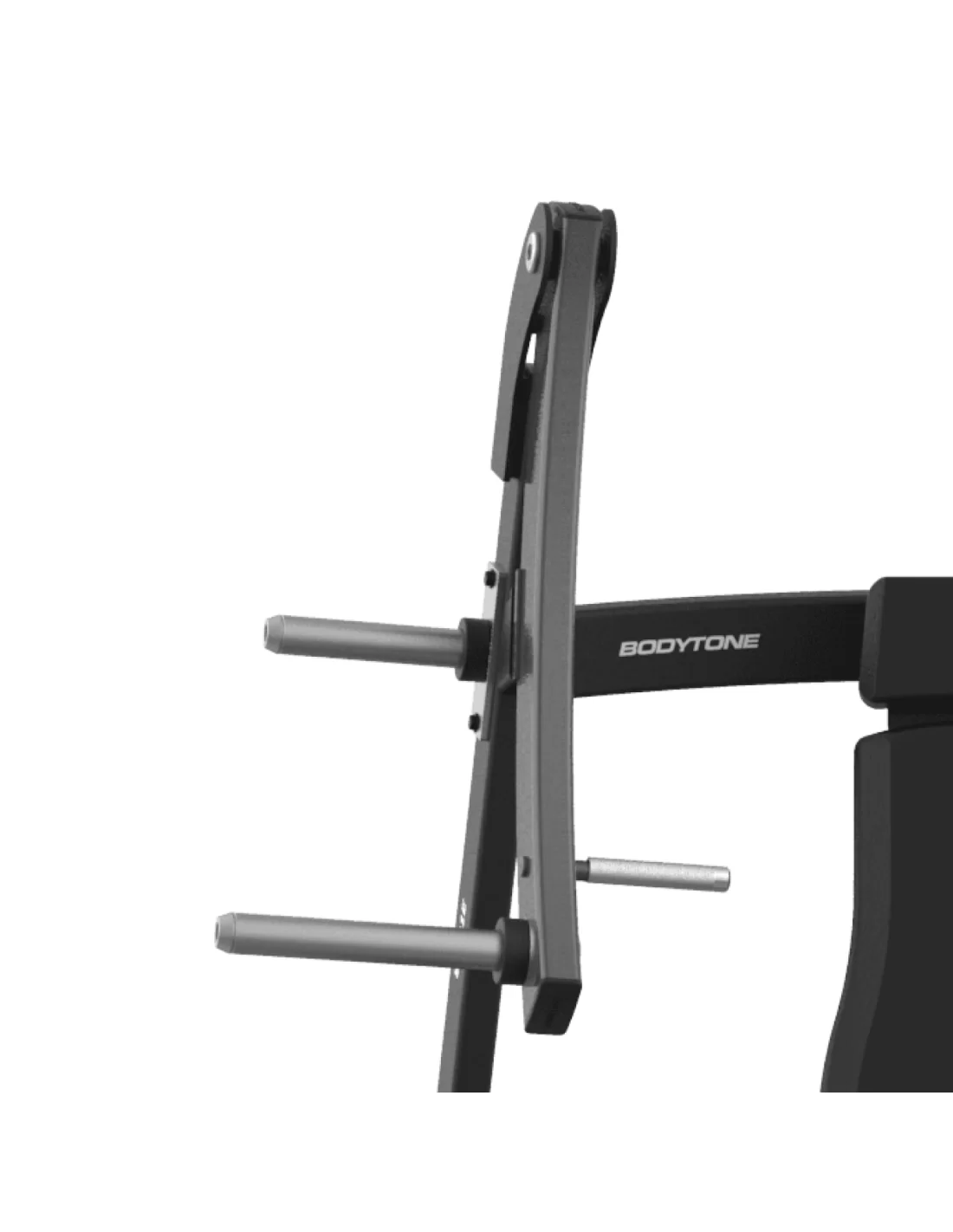

The axles of this machine are made of laser cut plates, 10mm thick, reinforced with another 10mm plate to ensure smooth movement without play or twisting due to continuous use or loading.

The load capacity of this machine is 240 kg for intensive training, with supports for up to 6 Bodytone discs of 20 kg per arm.

In summary, the Bodytone SR01E Vertical Press is high-quality professional strength training equipment, designed to offer optimal performance and exceptional comfort of use. With its sleek and versatile design, it will fit perfectly into your gym or home workout space.

Features:
Weight: 150 kg
Gama: Professional
Entrenamiento type: Fuerza
Product Line: Solid Rock
Deportes: Bodybuilding
neto peso: 150 kg
structure: Steel tubes of 110 x 52 mm with 3 mm thickness. Sold in accordance with the regulation of UNE 10219, calidad S-275-J0H. Enriquecido and optimizado to maintain a constant section in the curvado process, avoiding sensitive areas and minimizing the amount of roturas. Curved process in cold weather, using a 4-rod system, avoid any deformation in the process and maintain the physical characteristics in all parts. Perímetro cerrado de soldadura en los structurale points y placas de union.
materials and covers: 20 mm thick rubber covers in disc supports. 50 mm thick rubber covers to support mobile parts.
units: 1
Usage area: Interior
paint: 3 paint caps. Acero decapado and stabilized by total immersion of the pieces in different desiccant solutions to guarantee perfect and complete cleaning of the material base. Antioxidant printing to guarantee adequate protection of internal oxidation and good paint adhesion. 2 final coats of epoxy paint in polvo polyester, dried at 240oC.
mounting process: 10 mm of plate system against plate, to avoid holes and twists in the areas of maximum tension. An ergonomic and biomechanical study to optimize your exercise.
design: Biomechanical and ergonomic study based on the supervision of professionals and associated athletes. For a long period of design; from the factory, engineering investigation, prototyping production, testing by professional athletes, new products sold for sale.
Mounted dimensions: 185 x 107 x 173 cm
Trabajo area: Tren superior
base bases: 4 antidelizantes tales.
Rods: SKF double rods of conical rods, placed in a circled casing, anti-holgura, ensures a constant direction of movement.
Regulation palancas: Adjustable seat via pop-pin. Regulation system with a unique perno, manufactured in techno-polymer with a rotation index of 750 kg.
Fitted: Anodized ALUMINUM, knurled to favor the attachment.
ejes: 10mm thick laser cut plates with other 10mm thick boards to reforzar, to ensure smooth movement without holguras or twists produced for continued use or loading.
Cargo capacity: 310 mm supports for 6 Bodytone discs of 20 kg by arm (up to 240 kg for training)
medidas: 185 x 107 x 173 cm
